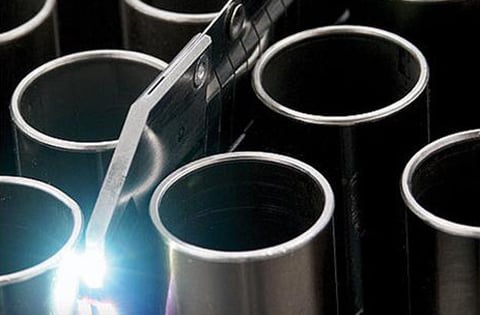

The world’s thinnest video endoscope Bladed Videoprobe With the latest LED technology, you will not get any broken fibers in the INVIZ DE 2.4 / 4.0 system. What’s more, by activating the turbo mode 25 more lumen make it possible to inspect up to 4″ / 100mm internal diameter. Two different light optimized optical systems are available(100° FOV und 60° FOV), providing greater flexibility for inspection.
Accurate colour fidelity, sharp contrast and freedom from noise are standard picture quality with this ground-breaking system. With a width of only 2.4 millimeters the DE 2.4 inspection camera can be easily guided through narrow tube lanes, as they are encountered in nuclear steam generators (including Siemens KWU type) or even in conventional heat exchangers. The world’s slimmest INVIZ DE 2.4 camera system allows a variety of inspections in the smallest spaces. Never before has such a high resolution has been reached with such a small design ! Uniquely the design has ensured that it is possible to carry out both hand-inspection as well as work with manipulators. Alternatively, the higher resolution DE 4.0 system is available with a length of up to 15 meters. The optics can be adjusted by ±30° depending on the application. In addition specialist tools such as grippers, hooks and magnets for recovering lost parts / scrap can be integrated into INVIZ DE 4.0.
Features
- Video PAL video 380 TV lines / 290.000 pixel
- NTSC video 330 TV lines / 250,000 pixel Optic 100°
- FOV Standard optics, 3 mm to 200 mm fixfocus. optional: 60° Teleoptic (not changable).
- Recommended Usage Instructions Using with 14” CRT monitor, 100° FOV: 10x / 20 mm distance
- Illumination 2 high performance white light LEDs optional: Fiber and LED illuminaton for the enhancement of luminous intensity
- Dimensions Width: 2.40 mm (± 0.03 mm), other versions are available on customers request
- Water Resistance 1 bar / 15 psi Control Unit Power Supply 96-256VAC 50/60Hz
- Dimensions Standard: (W) 260 mm x (L) 205 mm x (H) 45 mm
- Control Options Illumination, white balance Video Outputs Composite VBS, S-VHS (Y/C) out, NTSC or PAL (depends on camera)
- Options Digital output for INVIZ LCD image recorder Other 19” version available The CCU suppotrs only DE 2.4 / 4.0 cameras
