iPEK Rovver 125 Crawler

The most portable and versatile inspection crawler on the market today.

iPEK Rovver 125 Crawler

About

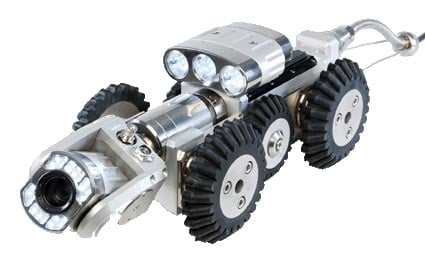

The most portable and versatile inspection crawler on the market today. It is ideally suited for many applications due to its modular design and ability to inspect inside pipes with diameters ranging from 100mm to 1000mm. It is the smallest crawler in its class, thereby giving it the ability to pass through restricted pipe, large offsets and intruding connections. The ROVVER’s remote pendant gives you the ability to control focus, lighting and steer the crawler when obstacles or offsets are present. This camera is rugged and dependable, with many hours of proven field service. The illumination ring of the camera employs 16 incandescent lamps, which are connected to the power supply independently.

Control Unit Dimensions (L x W x H) 508 x 228 x 330mm / 20” x 9” x 13”“ Weight 11.3kg / 25lbs Camera Dimensions (D x L) 50.8 x 24.9mm / 2” x 2.16”“ Camera Casing: Impact and abrasion resistant V2A steel Image Sensor CCD, 440,000pixels Sensitivity 3 Lux Resolution 460lines, horizontal Lens f=4mm f1.2, focusable Electrical Supply 110 VAC / 60 Hz Cable Drum (400, 600, 900) Cable: 1/3-in. diameter, very flexible. Drum: Slip-ring cable drum Tractor Unit Dimensions: Length 171.5mm overall, width 41.9mm, height 34.5mm Cable 150meters. 5mm diameter Camera 0.95” black and white / 1.18” colour The CCD Camera Head and all electronics are packaged in Control Unit Dimensions (L x W x H) 508 x 228 x 330mm / 20” x 9” x 13”“ Weight 11.3kg / 25lbs Camera Dimensions (D x L) 50.8 x 24.9mm / 2” x 2.16”“ Camera Casing: Impact and abrasion resistant V2A steel Image Sensor CCD, 440,000pixels Sensitivity 3 Lux Resolution 460lines, horizontal Lens f=4mm f1.2, focusable Electrical Supply 110 VAC / 60 Hz Cable Drum (400, 600, 900) Cable: 1/3-in. diameter, very flexible. Drum: Slip-ring cable drum Tractor Unit Dimensions: Length 171.5mm overall, width 41.9mm, height 34.5mm Cable 150meters. 5mm diameter Camera 0.95” black and white / 1.18” coloura compact 2 inch diameter stainless steel casing.
