Description

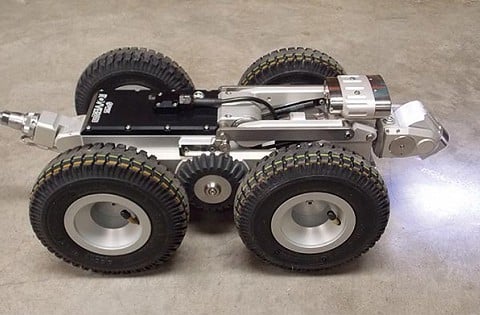

When you need an adjustable viewing height range and the power to inspect through rough terrain, the Rovver 225 is the inspection crawler to use. For optimum large-diameter (9–60") pipe inspection, the Rovver 225’s pendant-controlled lift platform adjusts camera height from 6–12". This rugged, all-wheel drive crawler moves easily over debris and around multiple turns. A remotely-operated clutch releases the wheels for free-wheeling retrieval.

The Rovver 225 carries a pan/tilt, pan/tilt/zoom or forward viewing colour video camera, plus retrieval, sensing or sampling equipment to distances as far as 660'. Its modular design and ability to inspect pipes with diameters larger than 9" make it ideally suited for a range of applications. Rovver’s remote pendant enables an operator to raise and lower the camera, change camera zoom and orientation, control focus and lighting, engage the clutch and steer the crawler around obstacles such as debris and offsets.

Specification

Crawler / Camera Unit  150(h) x 206(w) x 621(l)mm | 24kg

Cable Reel  600(l) x5 10(h) mm | 25kg

Control Unit  510(l) x 445(h) x 590(w)mm | 26.5kg

Motors  2x 40 Watt DC

Drive 6-wheel skid steer

Drive Clutch  Electric

Inclination Sensor  Standard +/- 10%

Internal Pressure Indicator  Coloured LED

Construction  Anodised aluminium and stainless steel

Depth Rating 1 Bar / 10 metres



Camera:

Imager 12.7mm Colour CCD (444,000 pixels)

Resolution   420 horizontal TV lines

Lens  4mm, f=1.2, remote focus

Focal Length  6mm to infinity

Construction  Stainless steel & anodised aluminium

Dimensions  192 x 88 x 88mm

Weight  1.5kg



Cable Reel

Cable Length  150 metres with motorised auto re-wind

Cable  Multi-conductor, 500Lb Kevlar strength member and Polyurethane outer

Drum  Polycarbonate slip ring cable drum
